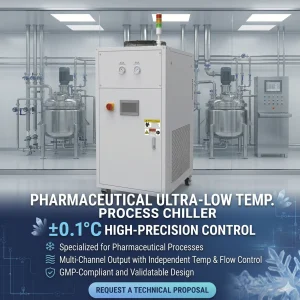

TCU Series Temperature Control Unit

TCU Series Temperature Control Unit

Product Overview
we are glad to introduce our new chiller !!!
Tekin’s Temperature Control Unit (TCU) is used in industrial, laboratory, and medical sectors for precise temperature control. It heats or cools a circulating medium (e.g., water or oil) to ensure process stability and product quality.

Core Technical Advantages

1. High-Precision Temperature Control: Employs advanced PID control algorithms to achieve a temperature control accuracy of ±0.1°C.

2. Wide Temperature Range: Capable of providing a broad temperature control range from -80°C to 300°C, tailored to specific requirements.

3. High Efficiency and Energy Savings: Utilizes high-efficiency compressors and heating elements to ensure low energy consumption and reduced operating costs.

4. Stability and Reliability: Features multiple safety protection mechanisms to guarantee stable, long-term operation of the equipment.

5. User-Friendly Operation: Equipped with an intuitive human-machine interface that simplifies operation and facilitates easy maintenance.

6. Modular Design: Facilitates easy expansion and maintenance, adapting readily to diverse application requirements.

Application Fields

1. Chemical Industry:

– Used for temperature control in equipment such as reaction vessels and distillation towers, ensuring that chemical reactions proceed at their optimal temperatures.

2. Pharmaceutical Industry:

– Used for temperature control during pharmaceutical manufacturing processes, including operations such as fermentation, crystallization, and drying.

3. Laboratories:

– Used for constant-temperature control in scientific research experiments, such as biological culturing and materials testing.

4. Electronics Industry:

– Used for temperature control during processes such as semiconductor manufacturing and electronic component testing.

Key Components

1. Heating System:

Heater: Typically employs electric heating elements—such as electric heating tubes or PTC heaters—to generate heat.

Heating Control Module: Precisely regulates heating power using PID control algorithms to ensure temperature stability.

2. Cooling System:

Compressor: Drives the refrigeration cycle to lower the temperature of the circulating medium.

Condenser: Dissipates heat from the refrigerant into the surrounding environment.

Expansion Valve: Regulates the flow rate of the refrigerant to control the cooling effect.

3. Circulation Pump:

– Drives the circulation of the medium throughout the system, ensuring uniform temperature distribution.

4. Temperature Sensor:

– Monitors the medium’s temperature in real-time and feeds this data back to the control system for adjustment.

5. Control System:

Controller: Typically a PLC or microprocessor, responsible for receiving sensor signals and managing the operation of the heating, cooling, and circulation pump components.

Human-Machine Interface (HMI): Provides an operational interface, allowing users to easily set and monitor temperature parameters.

6. Reservoir:

Used to store the circulating medium, ensuring that the system contains a sufficient volume of fluid for circulation.

7. Safety Protection Devices:

– Includes features such as overheat protection, overcurrent protection, and low-liquid-level alarms to ensure the safe operation of the equipment.

Application Fields

1. Chemical Industry:

– Used for temperature control in equipment such as reaction vessels and distillation towers, ensuring that chemical reactions proceed at their optimal temperatures.

2. Pharmaceutical Industry:

– Used for temperature control during pharmaceutical manufacturing processes, including operations such as fermentation, crystallization, and drying.

3. Laboratories:

– Used for constant-temperature control in scientific research experiments, such as biological culturing and materials testing.

4. Electronics Industry:

– Used for temperature control during processes such as semiconductor manufacturing and electronic component testing.
